102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector

Name: 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector
Brand: Jetacon
Price: 1 USD

Quality 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector for sale

Brand Name : Jetacon

Model Number : 102103104

Certification : CE

Place of Origin : China Mainland

MOQ : 5 Pieces

Price : US $29.99

Payment Terms : T/T, L/C, Paypal, Payoneer

Supply Ability : 200 /Pieces per Day

Delivery Time : 7-15 days

Packaging Details : Standard Export Carton

Material : Brass

Surface : Nickle Plated

Waterproof : IP68

Contact Now

Series 1F / 2F/ 3F/ 4F ( Metal ( Mechanical Keying ))

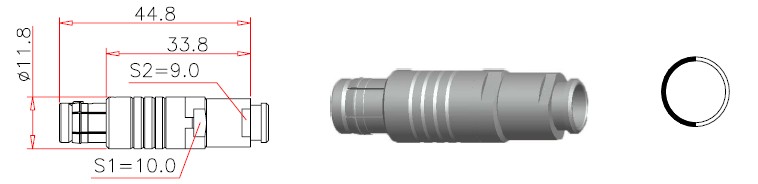

Shell Style / Model Straight plug, cable collet
Keying 1 key( half-moon ,plug;male contacts, receptacle:female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Cable Fixing 2.5 - 7.0 mm (0.10 - 0.276")

PERFORMANCE DETAILS
Insert 7 Low Voltage
Configuration Brass (gold plated)
Insulator P: PPS
Specifications Low Voltage Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028")
Bucket Dia.: 0.6 mm (0.025")
Max. Solid Conductor: 0.15 mm^2 (AWG 24)
Max. Stranded Conductor: 0.15 mm^2 (AWG 24)
R (max): 7.5 mOhm
Vtest (contact-shell): 1150 V
Vtest (contact-contact): 1000 V
Rated Current: 4 A (AC/DC)

102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector

102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector Images
